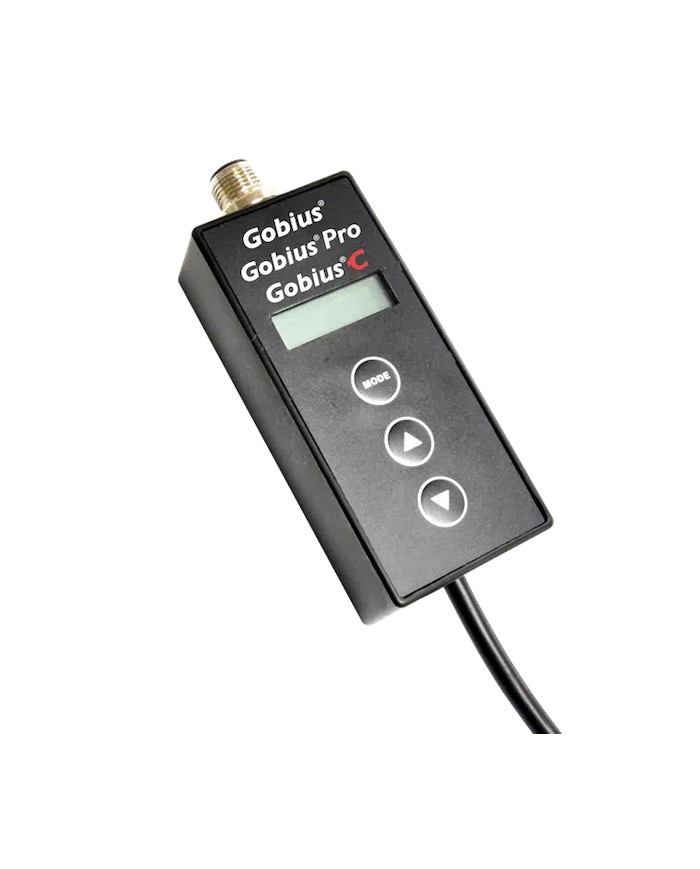

This new Converter transform analog sensor data from Gobius, Gobius Pro and Gobius C and other indicators into NMEA2000 data. The converter can also be used for: motor data, pressure or temperature data from existing sensors into NMEA2000 networks. You can connect up to 4 channels (tanks).
Specifications:
- Input signals: 0-190 Ohm, 240-33 Ohm, Self-defined (0-999 Ohm)
- Dimension: 90 x 40 x 25 mm
- Weight: 115 g
- Cable lenght: 1 meter
- Protection Rating: IP67
- Signal Output: NMEA 2000/J1939 Network Messages
- Operating Voltage: 9~16V
- Connector: Male “Micro-C” Pinout
- Operation Temperature: -40°F ~ +185°F(-40°C~+85°C)
- Power consumption: <50mA
- Connect the Converter direct to Gobius products
- Connect the Converter via the HUB to Gobius Pro sensors
- Instructions for connecting Gobius and Gobius Pro included
Can also be downloaded at Gobius Pro - Can also be downloaded at Gobius C
- Manfacturer: KUS, China
